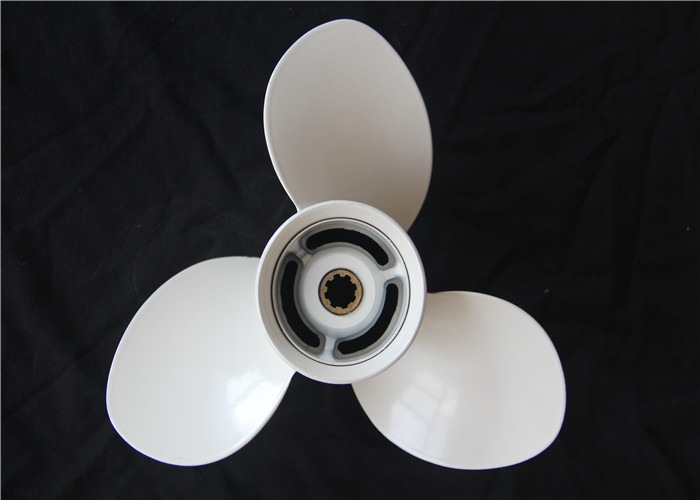

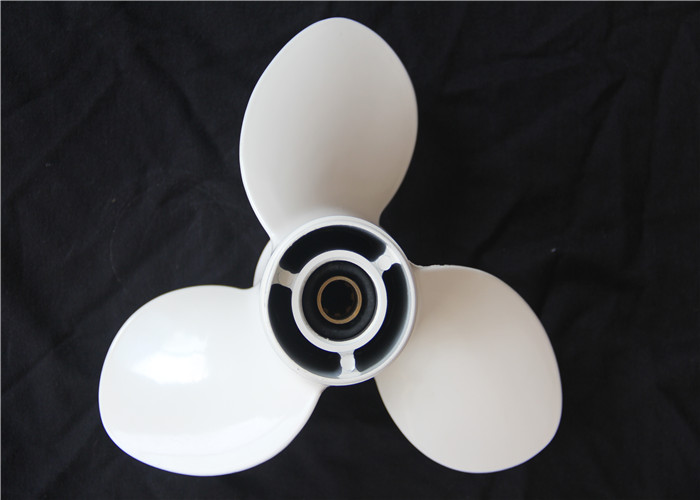

Boat Engine Aluminum Alloy Propeller 9 1/4x8-J for Yamaha 9.9HP 15HP Outboard Motors
Propeller Basics: 9.9-15HP 9 1/4x8-J
Main Specification
Type: Outboard motor propeller
Size: 3x9 1/4x8-J
PartsNo. :63V-45947-00-EL
MOQ.: 1pc
Leading time: 2-3 days after payment
Main Advantages
1. smaller diameter of the propeller hub can reduce the total propeller weight, increase the ship speed, energy-efficient and also lower the manufacture cost of the propeller
2. the hub diameter ratio for the blade against the propeller hub is lower which make sure the best propulsion
3. the high quality material makes sure longer serving life for the propeller
FAQ
- What's your strength?
We are specialized in marine propeller ,Jet Ski Impeller , all kinds of aluminum alloy leisure boat ,fishing boat ,working boat .
we have been suppling to global market for over 8 years with good quanlity ,competitive price and a wide range of categories .
- How many days will a new development item need?
Usually,we will prepare the molds and counter samples for a general part in 30-40days.
-Are you a manufacturer?
Yes, we are a professional Propeller and Marine Boat manufacturer over 12 years experience.,with our own factory in Qingdao .
- How many engineers are there in your R & D department?
There are more than 8 experienced engineers in my company, in which there are 3 of them are working in R & D department.
- What is the lead time for the general production order?
About 1 months according to the quantities.
- Where are your customers from?
Most of our customers are from North America and Europe.Russia Africa
- Which are the near ports?
We are located in Qingdao, there are1.5 hours driving from my company to Qingdao port and 30minutes to Qingdao Airport.
- What's the payment term?
T/T, Western Union, PayPal, L/C, .
It would be our pleasure to service you with satisfaction. We are sincerely hope to be your partners and friends here in Qingdao CHINA.
- Will you ask for sample charge?
For the general samples are free, for the big value ones, we will ask for sample fee in advance and refund upon total production order increasing to USD5,000.
| PROPELLER APPLICATION CHART |
| YAMAHA ALUMINUM ALLOY PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
| 2HP | 6F8-45942-01-EL | 3 | 7-1/4'' | 5'' | A |
2.5-6HP
9 Tooth Spine &thr Hub Exhaust | 6L5-45943-01-EL | 3 | 7-1/4'' | 6'' | BS |
| 6E0-45943-01-EL | 3 | 7-1/2'' | 7'' | BA |
| 6E0-45941-01-EL | 3 | 7-1/2'' | 8'' | BA |
| Plastic Black | 6E0-45941-01-EL | 3 | 7-1/2'' | 8'' | BA |
6-8HP
7 Tooth Spine &thr Hub Exhaust | 6G1-45943-00-EL | 3 | 8-1/2'' | 7-1/2'' | N |
| 6G1-45941-00-EL | 3 | 8-1/2'' | 8-1/2'' | N |
| 8HP Pin Drive | 647-45943-00-EL | 3 | 9'' | 7'' | C |
9.9-15HP,20HP
8 Tooth Spine &thru Hub Exhaust | 683-45947-00-EL | 3 | 9-1/4'' | 8'' | J |
| 683-45945-00-EL | 3 | 9-1/4'' | 9'' | J |
| 63V-45947-00-EL | 3 | 9-1/4'' | 8'' | J |
| 63V-45945-10-EL | 3 | 9-1/4'' | 9'' | J |
| 63V-45952-00-EL | 3 | 9-1/4'' | 10'' | J |
| 626-45943-02-EL | 3 | 9-1/4'' | 10 3/4'' | D |
| 63V-45943-00-EL | 3 | 9-1/4'' | 11'' | J |
| 683-45941-00-EL | 3 | 9-1/4'' | 12'' | J |
25-30HP(4 Stroke)
10 Tooth Spine &thru Hub Exhaust | 664-45945-00-EL | 3 | 9-7/8'' | 10 1-2'' | F |
| 664-45954-00-EL | 3 | 9-7/8'' | 12'' | F |
| 664-45949-02-EL | 3 | 9-7/8'' | 13'' | F |
40-55HP
13 Tooth Spine &thru Hub Exhaust | 663-45947-02-EL | 3 | 11-5/8'' | 11'' | G |
| 663-45952-02-EL | 3 | 11-3/8'' | 12'' | G |
| 663-45945-02-EL | 3 | 11-1/8'' | 13'' | G |
| 663-45958-01-EL | 3 | 11-1/4'' | 14'' | G |
| 663-45943-01-EL | 3 | 11'' | 15'' | G |
| 663-45956-01-EL | 3 | 12-1/4'' | 9'' | G |
| 40HP Pin Drive | 676-45956-61-EL | 3 | 11-3/4'' | 7 1-2'' | H |
| 676-45945-62-EL | 3 | 11 3/4'' | 10'' | H |
| 676-45941-62-EL | 3 | 11-1/2'' | 11'' | H |
| 676-45943-62-EL | 3 | 11-1/2'' | 12'' | H |
60-115HP
15 Tooth Spine &thru Hub Exhaust | 6E5-45949-00-EL | 3 | 13-5/8'' | 13'' | K |
| 6E5-45947-00-EL | 3 | 13-1/2'' | 15'' | K |
| 6E5-45945-01-EL | 3 | 13-1/4'' | 17'' | K |
| 6E5-45941-00-EL | 3 | 13'' | 19'' | K |
| 6E5-45954-00-EL | 3 | 14'' | 11'' | K |
150-300HP
15 Tooth Spine &thru Hub Exhaust | 6G5-45945-01-98 | 3 | 14'' | 19'' | K |
| YAMAHA STAINLESS STEEL PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
| 9.9-15HP | 63V-45947-00-EL | 3 | 9-1/4'' | 8'' | J |
| 9.9-15HP | 63V-45945-10-EL | 3 | 9-1/4'' | 9'' | J |
| 9.9-15HP | 63V-45952-00-EL | 3 | 9-1/4'' | 10'' | J |
| 9.9-15HP | 63V-45943-00-EL | 3 | 9-1/4'' | 11'' | J |
| 20-30HP | 664-45945-00-EL | 3 | 9-7/8'' | 10 1-2'' | F |
| 20-30HP | 664-45954-00-EL | 3 | 9-7/8'' | 12'' | F |
| 20-30HP | 664-45949-02-EL | 3 | 9-7/8'' | 13'' | F |
| 40-50HP | 663-45947-02-EL | 3 | 11-5/8'' | 11'' | G |
| 40-50HP | 663-45952-02-EL | 3 | 11-3/8'' | 12'' | G |
| 40-50HP | 69W-45945-00-EL | 3 | 11-1/8'' | 13'' | G |
| 40-50HP | 697-45970-00-98 | 3 | 11-1/4'' | 14'' | G |
| 40-50HP | 663-45943-01-EL | 3 | 11'' | 15'' | G |
| 60-115HP | 688-45932-60-98 | 3 | 13-1/2'' | 14'' | K |
| 60-115HP | 6E5-45947-00-EL | 3 | 13-1/2'' | 15'' | K |
| 60-115HP | 6G5-45978-00-98 | 3 | 13-3/4'' | 15'' | F |
| 60-115HP | 688-45930-01-98 | 3 | 13'' | 17'' | K |
| 60-115HP | 6L6-45930-02-98 | 3 | 13'' | 17'' | KL1 |
| 60-115HP | 688-45970-03-98 | 3 | 13'' | 19'' | K |
| 150-300HP | 6G5-45978-02-98 | 3 | 13-3/4'' | 17'' | M2 |
| 150-300HP | 6K1-45978-02-98 | 3 | 13-3/4'' | 17'' | ML1 |
| 150-300HP | 6G5-45974-03-98 | 3 | 13-3/4'' | 19'' | M |
| 150-300HP | 6G5-45978-03-98 | 3 | 14-1/2'' | 19'' | T |
| 150-300HP | 6G5-45970-82-98 | 3 | 15-1/2'' | 17'' | RX |
| 150-300HP | 6K1-45970-01-98 | 3 | 15-1/2'' | 17'' | LX |
| SUZUKI ALUMINUM ALLOY PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
| DT5-6 | A520 | 3 | 188mm | 135mm | |
| DT9.9-15 | 58100-91D00-019 | 3 | 9-1/4'' | 8'' | |
| 58100-93723-019 | 3 | 9-1/4'' | 9'' | |
| 58100-93733-019 | 3 | 9-1-4‘’ | 10'' | |
| DT9.9-15 | _ | 3 | 9-1-4‘’ | 12'' | |
| DF25-30(4 STROKE) | 58100-96420-019 | 3 | 10-1/4'' | 11'' | |
| 58100-96430-019 | 3 | 10-1/4'' | 12'' | |
| DT40,DF40 ,DT50,DF50 | 58100-95222-019 | 3 | 11-1/2'' | 11'' | |
| 58100-95393-019 | 3 | 11-5/8'' | 12'' | |
| 58100-94313-019 | 3 | 11-1/2'' | 13'' | |
| 58100-95353-019 | 3 | 11-3/8" | 14" | |
| DT60,DT75,DT85,DT90 | 58100-95500-019 | 3 | 13-1/2'' | 15'' | |
| 58100-95512-019 | 3 | 13-1/4'' | 17'' | |
| DT90-DT140 | 58100-90J10-019 | 3 | 14'' | 19'' | |
| SUZUKI STAINLESS STEEL PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
| DF25-30(4 STROKE) | 58100-96420-019 | 3 | 10-1/4'' | 11 | |
| 58100-96480-019 | 3 | 10-1/4'' | 12 | |
| MERCURY ALUMINUM ALLOY PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
| 5-6HP | 48-812950A02 | 3 | 7.8'' | 8'' | |
| 9.9HP | - | 3 | 8.5'' | 9'' | |
| 15HP | 48-828156A12 | 3 | 9.25'' | 9'' | |
| 15HP | 48-828158A12 | 3 | 9.25'' | 10'' | |
| 20-25HP | 48-19640A40 | 3 | 9.9'' | 13'' | |
| 25-60HP | 48-823478A5 | 3 | 11-5/8'' | 11'' | |
| 48-855856A5 | 3 | 11-3/8'' | 12'' | |
| 48-855858A5 | 3 | 11-1/8'' | 13'' | |
| 35-55(not bigfoot) | 48-73132A40 | 3 | 11-1/4'' | 11'' | |
| 60-125HP (Use Flotorp II Attanching Hardware Kits) | 48-77342A45 | 3 | 13-3/4'' | 15'' | |
| 48-77344A45 | 3 | 13-1/4'' | 17'' | |
| 135-250HP | 48-16317A46 | 3 | 14-1/2'' | 19'' | |
| MERCURY STAINLESS STEEL PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
60-125HP (Use Flotorp
II Attanching Hardware Kits) | 48-77344A45 | 3 | 13-1/4'' | 17'' | |
| 135-225HP | 48-16317A46 | 3 | 14-1/2'' | 19'' | |
| TOHATSU ALUMINUM ALLOY PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
| 5HP | 3R1W64516-0 | 3 | 7.8'' | 8'' | |
| 9.8-18HP | 3B2B64517-0 | 3 | 8.5'' | 9'' | |
| 3B2W64517-1 | 3 | 8.9'' | 8.5'' | |
| 362-64101-0 | 3 | 9.25'' | 9'' | |
| 362-64108-0 | 3 | 9.25'' | 10'' | |
| 20-30HP | 3R0B64525-0 | 3 | 9.9'' | 12'' | |
| 346-64104-5 | 3 | 9.9'' | 13'' | |
| 40-60HP | 353-64106-0 | 3 | 11 5/8'' | 14'' | |
| HONDA ALUMINUM ALLOY PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
| 5-6HP | 6011-079-07P | 2 | 200mm | 190mm | |
| HONDA STAINLESS STEEL PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
| 40-50HP | 58130-ZV5-870-ZA | 3 | 11'' | 15'' | |
| 40-50HP | 58130-ZV5-000-ZA | 3 | 11 1/8'' | 13'' | |
| 40-50HP | 58130-ZV5-870-ZA | 3 | 11 1/8'' | 14'' | |
| 40-50HP | 58130-ZV5-860-ZA | 3 | 11 5/8'' | 11'' | |
| 40-50HP | 58130-ZV5-850-ZA | 3 | 11 3/8'' | 12'' | |
| 90-225HP | 58234-ZY3-A17H | 3 | 14.5'' | 17'' | |
| 150-300HP(Right rotation) | 854-997-4 | 3 | 15 1/2'' | 17'' | RX |
| 150-300HP(Left rotation) | 985-997-6 | 3 | 15 1/2'' | 17'' | LX |
| SPECIAL PROPELLER |
| Outboard engine | OEM part No. | blades | diameter | Pitch | R |
| Volov Diesel Engine |  | 3 | 16'' | 21'' | - |
| 2 blades SS PROPELLER |  | 2 | 6-1/2'' | 4'' | - |
| 4 blades SS PROPELLER |  | 4 | 13'' | 19'' | - |
| Racing Speed SS Propeller |  | 3 | 13.75'' | - | - |
| Aeromodeling Propeller |  | 2 | - | - | - |
| ENGINE ACCESSORIES |
| IMPELLER | | | | | |
| Outboard engine | OEM part No. | | | | |
| 2HP | 646-44352-00 | | - |
| 4-5HP | 6E0-44352-00 | - |
| 5HP | 662-44352-00 | - |
| 9.9-15HP | 682-44352-03 | - |
| 15HP | 63V-44352-00 | - |
| 25HP,40HP,50HP | 6H4-44352-00 | - |
| 40HP | 6F5-44352-00 | - |
| 55HP,65HP,70HP | 6H3-44352-00 | - |
| 75HP,85HP,90HP | 688-44352-03 | - |
| 200HP | 6E5-44352-00 | - |
| ANODE | | | | | |
| 60-85HP | 6H1-45251-03 |  |  |
| 115-300HP | 6G5-45251-01 |
| TAB-TRIM |
| 40HP | 664-45371-01 |  | - |
| 48--55HP | 679-45371-00 | - |
| 60--85HP | 688-45371-02 | - |
| 115HP | 6E5-45371-01 | - |
| 150--300HP | 6J9-45371-01 | - |
| PROPELLER HARDWARE KITS | THRUST WASHER | SPACER | WASHER | COTTER PIN | NUT |
| 4-5HP | 90201-08M54 | 6L5-45987-01 | - | - | - |
| 9.9-15HP | 90201-10M01 | 6E7-45987-01 | - |  |
| 30HP | 6L2-45987-01 | 689-45997-00 | 92990-14200 |
| 40HP | 663-45987-02 | 66T-45997-00 | 90389-22M01 |
| 48-55HP | 663-45987-02 | 670-45997-02 | 92990-16200 |
| 60-85HP | 688-45987-01 | 688-45997-01 | 90201-17M00 |
| 115-200HP | 6E5-45987-01 | 688-459977-01 | 92990-18200 | - | - |
| NUT |
| 40-55HP | 697-45384-00 |  |
| 60-85HP | 688-45384-00 |
| 115-250HP | 688-45384-00 |
| JET SKI IMPELLER |
| Brand | Horse Power | Diameter | Type | | |
| Customized | 20HP | 99-120mm | sand blast /Polished |  |
| Customized | 80-400HP | 140-180mm | sand blast /Polished |  |
| VX700 | 80HP | 150mm | sand blast |  |
| VX1100 | 110HP | 150mm | sand blast /Polished |  |
| MARINE HARDWARE |
| FAIR-LEAD | |  | | - |
ROD HOLDER
AISI 316 STAINLESS STEEL | |  | | - |
| BOLLARD | |  | | - |
HOLLOW BASE CLEAT
AISI 316 STAINLESS STEEL | |  | 6'' | - |
| | 8'' | - |
| | 10'' | - |
CLEAT
AISI 316 STAINLESS STEEL | |  | 6'' | - |
| | 8'' | - |
ANCHOR
AISI 316 STAINLESS STEEL | |  | 3.2Kgs | - |
| FUEL TANK | |  | 24L | - |
| | 12L | - |
| FUEL LINE | |  | 8mm | - |
