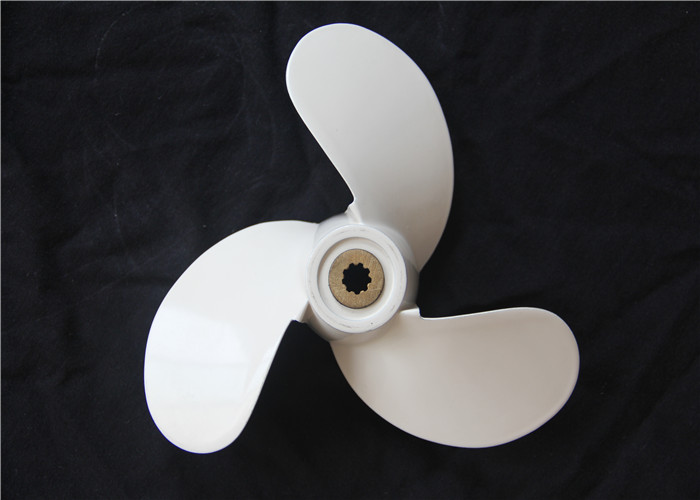

7 1/4X6-BS 6L5-45943-00-00 Propeller for Yamaha 2.5HP 3HP 4HP 5HP Outboard Motors
Propeller Basics: 7 1/4x6-BS
Main Specification
Type: Outboard motor propeller
Size: 3x7 1/4x6-BS
PartsNo. :6L5-45943-01-EL
MOQ.: 1pcs
Leading time: 2-3 days after payment
This information is critical to determining the correct propeller for your application:
1. 3 Blades
3- blade propeller usually offer s top speed performance.
2. Diameter:
Diameter is the distance across a circle encompassing all of the propeller blades.
3. Pitch:
Pitch is the theoretical distance a propeller will move through the water of each revolution.
4. Right hand or left hand Rotation
In most cases, right hand propellers are used for single engine application and one left hand propellers are used for twin engine applications to achieve better steering control.
5. Cupped Blades:
This is a technique used to enhance the performance of propellers under certain conditions. A cupped propeller will exhibit very high efficiency at high speeds as well as minimize cavitation under heavy loads.
6. Rake:
Rake is special design feature. Positive rake benefits from normal bow lift to permit the use of a larger diameter propeller, while negative rake can provide extra blade strength for use in very high speed applications.
Company Profile
Qingdao Yonghexing Houseboat Propeller Factory was founded in 2000,located in JIMO district Qingdao city China .We are a professional manufacturer in outboard /stern drive propellers and impellers for personal watercraft vehicles.
Our propeller can match the size and type with YAMAHA, MERCURY,HONDA,SUZUKI,TOHATSU and other brands engines .
Meanwhile,We also produce marine anodes,and other accessories made by copper ,aluminum alloy ,rubber, Stainless steel and numerical control matching for outboard motors.
We have an outstanding R&D team with superior CAD,CAM and CAE capabilities to meet the customers’ various requirement .
We have always been instilling a high level of quanlity consciousness and controlling every aspect of quanlity in terms of thickness ,corrosion resistance ,resistance against rust and collisions ,also we installed analysis equipment to assist the inspection and testing process .
After many years of develpment ,Our propellers are distributed to 25 contries and regions in the world and recognized by more and more customers .We are constantly improving process and striving even higher.
| PROPELLER APPLICATION CHART |
| YAMAHA ALUMINUM ALLOY PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
| 2HP |
6F8-45942-01-EL |
3 |
7-1/4'' |
5'' |
A |
2.5-6HP
9 Tooth Spine &thr Hub Exhaust |
6L5-45943-01-EL |
3 |
7-1/4'' |
6'' |
BS |
| 6E0-45943-01-EL |
3 |
7-1/2'' |
7'' |
BA |
| 6E0-45941-01-EL |
3 |
7-1/2'' |
8'' |
BA |
| Plastic Black |
6E0-45941-01-EL |
3 |
7-1/2'' |
8'' |
BA |
6-8HP
7 Tooth Spine &thr Hub Exhaust |
6G1-45943-00-EL |
3 |
8-1/2'' |
7-1/2'' |
N |
| 6G1-45941-00-EL |
3 |
8-1/2'' |
8-1/2'' |
N |
| 8HP Pin Drive |
647-45943-00-EL |
3 |
9'' |
7'' |
C |
9.9-15HP,20HP
8 Tooth Spine &thru Hub Exhaust |
683-45947-00-EL |
3 |
9-1/4'' |
8'' |
J |
| 683-45945-00-EL |
3 |
9-1/4'' |
9'' |
J |
| 63V-45947-00-EL |
3 |
9-1/4'' |
8'' |
J |
| 63V-45945-10-EL |
3 |
9-1/4'' |
9'' |
J |
| 63V-45952-00-EL |
3 |
9-1/4'' |
10'' |
J |
| 626-45943-02-EL |
3 |
9-1/4'' |
10 3/4'' |
D |
| 63V-45943-00-EL |
3 |
9-1/4'' |
11'' |
J |
| 683-45941-00-EL |
3 |
9-1/4'' |
12'' |
J |
25-30HP(4 Stroke)
10 Tooth Spine &thru Hub Exhaust |
664-45945-00-EL |
3 |
9-7/8'' |
10 1-2'' |
F |
| 664-45954-00-EL |
3 |
9-7/8'' |
12'' |
F |
| 664-45949-02-EL |
3 |
9-7/8'' |
13'' |
F |
40-55HP
13 Tooth Spine &thru Hub Exhaust |
663-45947-02-EL |
3 |
11-5/8'' |
11'' |
G |
| 663-45952-02-EL |
3 |
11-3/8'' |
12'' |
G |
| 663-45945-02-EL |
3 |
11-1/8'' |
13'' |
G |
| 663-45958-01-EL |
3 |
11-1/4'' |
14'' |
G |
| 663-45943-01-EL |
3 |
11'' |
15'' |
G |
| 663-45956-01-EL |
3 |
12-1/4'' |
9'' |
G |
| 40HP Pin Drive |
676-45956-61-EL |
3 |
11-3/4'' |
7 1-2'' |
H |
| 676-45945-62-EL |
3 |
11 3/4'' |
10'' |
H |
| 676-45941-62-EL |
3 |
11-1/2'' |
11'' |
H |
| 676-45943-62-EL |
3 |
11-1/2'' |
12'' |
H |
60-115HP
15 Tooth Spine &thru Hub Exhaust |
6E5-45949-00-EL |
3 |
13-5/8'' |
13'' |
K |
| 6E5-45947-00-EL |
3 |
13-1/2'' |
15'' |
K |
| 6E5-45945-01-EL |
3 |
13-1/4'' |
17'' |
K |
| 6E5-45941-00-EL |
3 |
13'' |
19'' |
K |
| 6E5-45954-00-EL |
3 |
14'' |
11'' |
K |
150-300HP
15 Tooth Spine &thru Hub Exhaust |
6G5-45945-01-98 |
3 |
14'' |
19'' |
K |
| YAMAHA STAINLESS STEEL PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
| 9.9-15HP |
63V-45947-00-EL |
3 |
9-1/4'' |
8'' |
J |
| 9.9-15HP |
63V-45945-10-EL |
3 |
9-1/4'' |
9'' |
J |
| 9.9-15HP |
63V-45952-00-EL |
3 |
9-1/4'' |
10'' |
J |
| 9.9-15HP |
63V-45943-00-EL |
3 |
9-1/4'' |
11'' |
J |
| 20-30HP |
664-45945-00-EL |
3 |
9-7/8'' |
10 1-2'' |
F |
| 20-30HP |
664-45954-00-EL |
3 |
9-7/8'' |
12'' |
F |
| 20-30HP |
664-45949-02-EL |
3 |
9-7/8'' |
13'' |
F |
| 40-50HP |
663-45947-02-EL |
3 |
11-5/8'' |
11'' |
G |
| 40-50HP |
663-45952-02-EL |
3 |
11-3/8'' |
12'' |
G |
| 40-50HP |
69W-45945-00-EL |
3 |
11-1/8'' |
13'' |
G |
| 40-50HP |
697-45970-00-98 |
3 |
11-1/4'' |
14'' |
G |
| 40-50HP |
663-45943-01-EL |
3 |
11'' |
15'' |
G |
| 60-115HP |
688-45932-60-98 |
3 |
13-1/2'' |
14'' |
K |
| 60-115HP |
6E5-45947-00-EL |
3 |
13-1/2'' |
15'' |
K |
| 60-115HP |
6G5-45978-00-98 |
3 |
13-3/4'' |
15'' |
F |
| 60-115HP |
688-45930-01-98 |
3 |
13'' |
17'' |
K |
| 60-115HP |
6L6-45930-02-98 |
3 |
13'' |
17'' |
KL1 |
| 60-115HP |
688-45970-03-98 |
3 |
13'' |
19'' |
K |
| 150-300HP |
6G5-45978-02-98 |
3 |
13-3/4'' |
17'' |
M2 |
| 150-300HP |
6K1-45978-02-98 |
3 |
13-3/4'' |
17'' |
ML1 |
| 150-300HP |
6G5-45974-03-98 |
3 |
13-3/4'' |
19'' |
M |
| 150-300HP |
6G5-45978-03-98 |
3 |
14-1/2'' |
19'' |
T |
| 150-300HP |
6G5-45970-82-98 |
3 |
15-1/2'' |
17'' |
RX |
| 150-300HP |
6K1-45970-01-98 |
3 |
15-1/2'' |
17'' |
LX |
| SUZUKI ALUMINUM ALLOY PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
| DT5-6 |
A520 |
3 |
188mm |
135mm |
|
| DT9.9-15 |
58100-91D00-019 |
3 |
9-1/4'' |
8'' |
|
| 58100-93723-019 |
3 |
9-1/4'' |
9'' |
|
| 58100-93733-019 |
3 |
9-1-4‘’ |
10'' |
|
| DT9.9-15 |
_ |
3 |
9-1-4‘’ |
12'' |
|
| DF25-30(4 STROKE) |
58100-96420-019 |
3 |
10-1/4'' |
11'' |
|
| 58100-96430-019 |
3 |
10-1/4'' |
12'' |
|
| DT40,DF40 ,DT50,DF50 |
58100-95222-019 |
3 |
11-1/2'' |
11'' |
|
| 58100-95393-019 |
3 |
11-5/8'' |
12'' |
|
| 58100-94313-019 |
3 |
11-1/2'' |
13'' |
|
| 58100-95353-019 |
3 |
11-3/8" |
14" |
|
| DT60,DT75,DT85,DT90 |
58100-95500-019 |
3 |
13-1/2'' |
15'' |
|
| 58100-95512-019 |
3 |
13-1/4'' |
17'' |
|
| DT90-DT140 |
58100-90J10-019 |
3 |
14'' |
19'' |
|
| SUZUKI STAINLESS STEEL PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
| DF25-30(4 STROKE) |
58100-96420-019 |
3 |
10-1/4'' |
11 |
|
| 58100-96480-019 |
3 |
10-1/4'' |
12 |
|
| MERCURY ALUMINUM ALLOY PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
| 5-6HP |
48-812950A02 |
3 |
7.8'' |
8'' |
|
| 9.9HP |
- |
3 |
8.5'' |
9'' |
|
| 15HP |
48-828156A12 |
3 |
9.25'' |
9'' |
|
| 15HP |
48-828158A12 |
3 |
9.25'' |
10'' |
|
| 20-25HP |
48-19640A40 |
3 |
9.9'' |
13'' |
|
| 25-60HP |
48-823478A5 |
3 |
11-5/8'' |
11'' |
|
| 48-855856A5 |
3 |
11-3/8'' |
12'' |
|
| 48-855858A5 |
3 |
11-1/8'' |
13'' |
|
| 35-55(not bigfoot) |
48-73132A40 |
3 |
11-1/4'' |
11'' |
|
| 60-125HP (Use Flotorp II Attanching Hardware Kits) |
48-77342A45 |
3 |
13-3/4'' |
15'' |
|
| 48-77344A45 |
3 |
13-1/4'' |
17'' |
|
| 135-250HP |
48-16317A46 |
3 |
14-1/2'' |
19'' |
|
| MERCURY STAINLESS STEEL PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
60-125HP (Use Flotorp
II Attanching Hardware Kits) |
48-77344A45 |
3 |
13-1/4'' |
17'' |
|
| 135-225HP |
48-16317A46 |
3 |
14-1/2'' |
19'' |
|
| TOHATSU ALUMINUM ALLOY PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
| 5HP |
3R1W64516-0 |
3 |
7.8'' |
8'' |
|
| 9.8-18HP |
3B2B64517-0 |
3 |
8.5'' |
9'' |
|
| 3B2W64517-1 |
3 |
8.9'' |
8.5'' |
|
| 362-64101-0 |
3 |
9.25'' |
9'' |
|
| 362-64108-0 |
3 |
9.25'' |
10'' |
|
| 20-30HP |
3R0B64525-0 |
3 |
9.9'' |
12'' |
|
| 346-64104-5 |
3 |
9.9'' |
13'' |
|
| 40-60HP |
353-64106-0 |
3 |
11 5/8'' |
14'' |
|
| HONDA ALUMINUM ALLOY PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
| 5-6HP |
6011-079-07P |
2 |
200mm |
190mm |
|
| HONDA STAINLESS STEEL PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
| 40-50HP |
58130-ZV5-870-ZA |
3 |
11'' |
15'' |
|
| 40-50HP |
58130-ZV5-000-ZA |
3 |
11 1/8'' |
13'' |
|
| 40-50HP |
58130-ZV5-870-ZA |
3 |
11 1/8'' |
14'' |
|
| 40-50HP |
58130-ZV5-860-ZA |
3 |
11 5/8'' |
11'' |
|
| 40-50HP |
58130-ZV5-850-ZA |
3 |
11 3/8'' |
12'' |
|
| 90-225HP |
58234-ZY3-A17H |
3 |
14.5'' |
17'' |
|
| 150-300HP(Right rotation) |
854-997-4 |
3 |
15 1/2'' |
17'' |
RX |
| 150-300HP(Left rotation) |
985-997-6 |
3 |
15 1/2'' |
17'' |
LX |
| SPECIAL PROPELLER |
| Outboard engine |
OEM part No. |
blades |
diameter |
Pitch |
R |
| Volov Diesel Engine |
 |
3 |
16'' |
21'' |
- |
| 2 blades SS PROPELLER |
 |
2 |
6-1/2'' |
4'' |
- |
| 4 blades SS PROPELLER |
 |
4 |
13'' |
19'' |
- |
| Racing Speed SS Propeller |
 |
3 |
13.75'' |
- |
- |
| Aeromodeling Propeller |
 |
2 |
- |
- |
- |
| ENGINE ACCESSORIES |
| IMPELLER |
|
|
|
|
|
| Outboard engine |
OEM part No. |
|
|
|
|
| 2HP |
646-44352-00 |
|
- |
| 4-5HP |
6E0-44352-00 |
- |
| 5HP |
662-44352-00 |
- |
| 9.9-15HP |
682-44352-03 |
- |
| 15HP |
63V-44352-00 |
- |
| 25HP,40HP,50HP |
6H4-44352-00 |
- |
| 40HP |
6F5-44352-00 |
- |
| 55HP,65HP,70HP |
6H3-44352-00 |
- |
| 75HP,85HP,90HP |
688-44352-03 |
- |
| 200HP |
6E5-44352-00 |
- |
| ANODE |
|
|
|
|
|
| 60-85HP |
6H1-45251-03 |
 |
 |
| 115-300HP |
6G5-45251-01 |
| TAB-TRIM |
| 40HP |
664-45371-01 |
 |
- |
| 48--55HP |
679-45371-00 |
- |
| 60--85HP |
688-45371-02 |
- |
| 115HP |
6E5-45371-01 |
- |
| 150--300HP |
6J9-45371-01 |
- |
| PROPELLER HARDWARE KITS |
THRUST WASHER |
SPACER |
WASHER |
COTTER PIN |
NUT |
| 4-5HP |
90201-08M54 |
6L5-45987-01 |
- |
- |
- |
| 9.9-15HP |
90201-10M01 |
6E7-45987-01 |
- |
 |
| 30HP |
6L2-45987-01 |
689-45997-00 |
92990-14200 |
| 40HP |
663-45987-02 |
66T-45997-00 |
90389-22M01 |
| 48-55HP |
663-45987-02 |
670-45997-02 |
92990-16200 |
| 60-85HP |
688-45987-01 |
688-45997-01 |
90201-17M00 |
| 115-200HP |
6E5-45987-01 |
688-459977-01 |
92990-18200 |
- |
- |
| NUT |
| 40-55HP |
697-45384-00 |
 |
| 60-85HP |
688-45384-00 |
| 115-250HP |
688-45384-00 |
| JET SKI IMPELLER |
| Brand |
Horse Power |
Diameter |
Type |
|
|
| Customized |
20HP |
99-120mm |
sand blast /Polished |
 |
| Customized |
80-400HP |
140-180mm |
sand blast /Polished |
 |
| VX700 |
80HP |
150mm |
sand blast |
 |
| VX1100 |
110HP |
150mm |
sand blast /Polished |
 |
| MARINE HARDWARE |
| FAIR-LEAD |
|
 |
|
- |
ROD HOLDER
AISI 316 STAINLESS STEEL |
|
 |
|
- |
| BOLLARD |
|
 |
|
- |
HOLLOW BASE CLEAT
AISI 316 STAINLESS STEEL |
|
 |
6'' |
- |
| |
8'' |
- |
| |
10'' |
- |
CLEAT
AISI 316 STAINLESS STEEL |
|
 |
6'' |
- |
| |
8'' |
- |
ANCHOR
AISI 316 STAINLESS STEEL |
|
 |
3.2Kgs |
- |
| FUEL TANK |
|
 |
24L |
- |
| |
12L |
- |
| FUEL LINE |
|
 |
8mm |
- |
Product Tags:
|
|
Good Performance Boat Propellers Right Rotation 3 Blades with Aluminum Material Images
|
