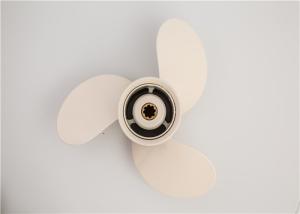

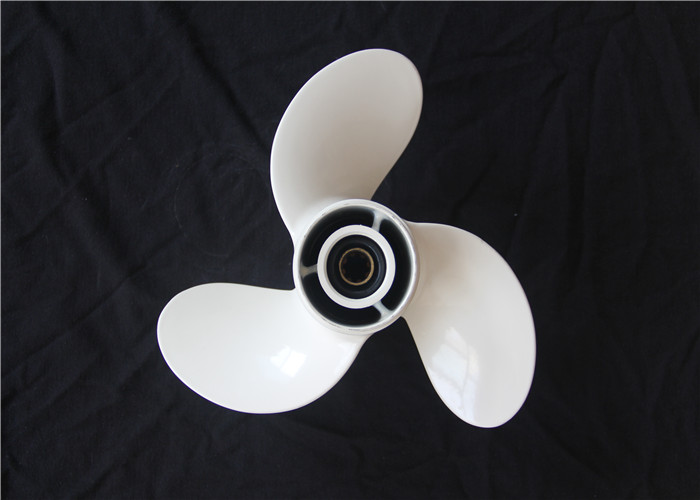

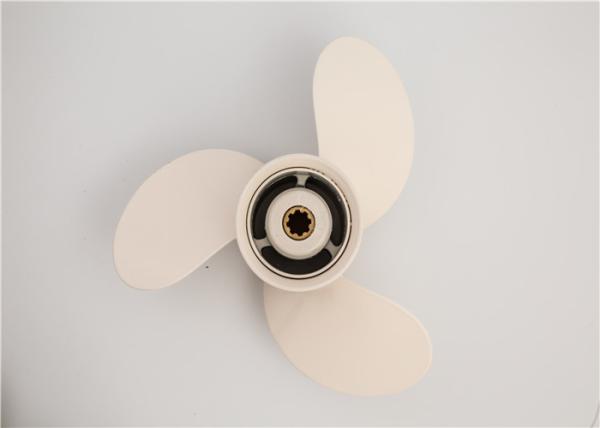

Outboard Propeller 9 1/4X9-J Aluminum Alloy Propeller For Yamaha Boat Motor 15HP 683-459459-00-EL
Propeller Basics: 9 1/4x9-J
Main Specification
Type: Outboard motor propeller
Size: 9 1/4X9-J pitch
Parts No.:683-45945-00-EL
Fit for : Yamaha outboard motor
MOQ.: 1pc
Leading time: 1-2 days after payment
| Characteristics |
| Propeller Specs |
3x9-1/4x9-J |
| Number of Blades |
3 |
| Propeller Diameter |
9 1/4 |
| Propeller Pitch |
9 |
| Number of Splines |
8 |
| Material |
Aluminium |
| Setting on Shaft |
Splines |
| Rotation |
Right |
| Propeller Bush Diameter |
62.5 mm |
| Brand |
YHX |
2. Applications :
Fit Yamaha 2-stroke and 4 stroke outboard motor models:
2001 15MSHKZ LOWER CASING DRIVE 2
2001 15MSHZ LOWER CASING DRIVE 2
2001 9.9MSHKZ LOWER CASING DRIVE 2
2001 9.9MSHZ LOWER CASING DRIVE 2
2001 F9.9ELRZ LOWER CASING DRIVE 2
2001 F9.9MLHZ LOWER CASING DRIVE 2
2001 F9.9MSHZ LOWER CASING DRIVE 2
2002 15MSHA LOWER CASING DRIVE 2
2002 9.9MSHA LOWER CASING DRIVE 2
2002 F9.9ELRA LOWER CASING DRIVE 2
2002 F9.9MLHA LOWER CASING DRIVE 2
2002 F9.9MSHA LOWER CASING DRIVE 2
2003 15MSHB LOWER CASING DRIVE 2
2003 9.9MSHB LOWER CASING DRIVE 2
2003 F9.9ELRB LOWER CASING DRIVE 2
2003 F9.9MLHB LOWER CASING DRIVE 2
2003 F9.9MSHB LOWER CASING DRIVE 2
2004 15MSHC LOWER CASING DRIVE 2
2004 9.9MSHC LOWER CASING DRIVE 2
2004 F9.9ELRC LOWER CASING DRIVE 2
2004 F9.9MLHC LOWER CASING DRIVE 2
2004 F9.9MSHC LOWER CASING DRIVE 2
2005 15FMHS LOWER CASING DRIVE 2
2005 15MSHD LOWER CASING DRIVE 2
2005 9.9FMHS LOWER CASING DRIVE 2
2005 9.9MSHD LOWER CASING DRIVE 2
2005 F15ELHD LOWER CASING DRIVE 2
2005 F15ESHD LOWER CASING DRIVE 2
2005 F15MLHD LOWER CASING DRIVE 2
2005 F15MSHD LOWER CASING DRIVE 2
2005 F15PLHD LOWER CASING DRIVE 2
2005 F15PLRD LOWER CASING DRIVE 2
2005 F9.9ELR2D LOWER CASING DRIVE 2
2005 F9.9ELRD LOWER CASING DRIVE 2
2005 F9.9MLH2D LOWER CASING DRIVE 2
2005 F9.9MLHD LOWER CASING DRIVE 2
2005 F9.9MSH2D LOWER CASING DRIVE 2
2005 F9.9MSHD LOWER CASING DRIVE 2
2006 and Later F15ELH LOWER CASING DRIVE 2
2006 and Later F15ELHK LOWER CASING DRIVE 2
2006 and Later F15ESH LOWER CASING DRIVE 2
2006 and Later F15ESHK LOWER CASING DRIVE 2
2006 and Later F15MLH LOWER CASING DRIVE 2
2006 and Later F15MLHK LOWER CASING DRIVE 2
2006 and Later F15MSH LOWER CASING DRIVE 2
2006 and Later F15MSHK LOWER CASING DRIVE 2
2006 and Later F15PLH LOWER CASING DRIVE 2
2006 and Later F15PLHK LOWER CASING DRIVE 2
2006 and Later F15PLR LOWER CASING DRIVE 2
2006 and Later F15PLRK LOWER CASING DRIVE 2
2006 and Later F9.9ELR LOWER CASING DRIVE 2
2006 and Later F9.9ELR2 LOWER CASING DRIVE 2
2006 and Later F9.9ELR2K LOWER CASING DRIVE 2
2006 and Later F9.9MLH LOWER CASING DRIVE 2
2006 and Later F9.9MLH2 LOWER CASING DRIVE 2
2006 and Later F9.9MLH2K LOWER CASING DRIVE 2
2006 and Later F9.9MSH LOWER CASING DRIVE 2
2006 and Later F9.9MSH2 LOWER CASING DRIVE 2
2006 and Later F9.9MSH2K LOWER CASING DRIVE 2
2006 and Later Rigging PROPELLERS F2.5 THROUGH F20
